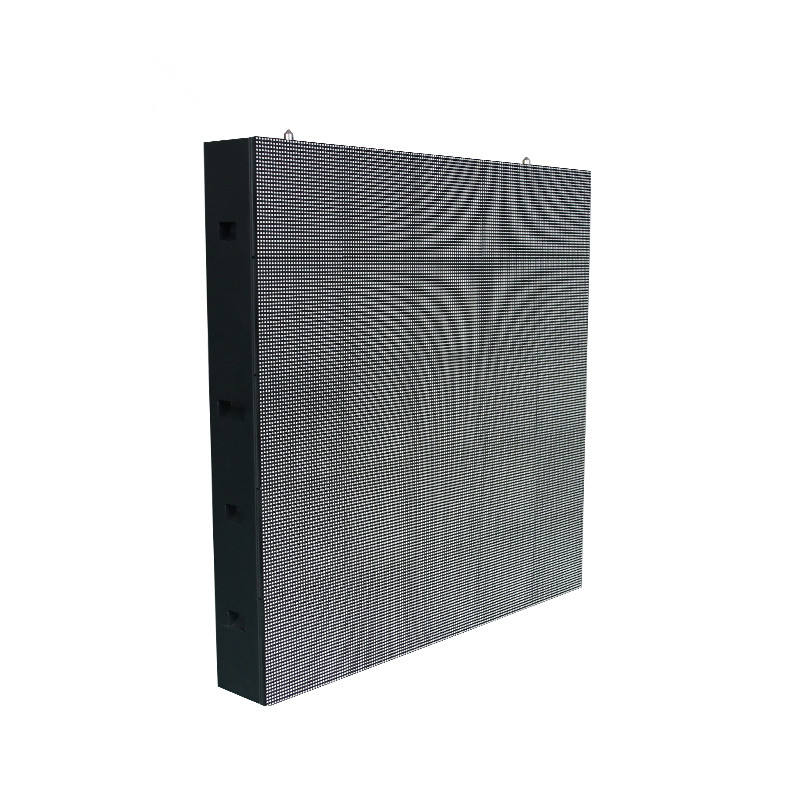

Product Type: Outdoor LED Display
Installation Method: Hanging / Wall-mounted / Floor-standing
Pixel Pitch: P3, P4, P5, P6, P8, P10 optional
Module Size: 320mm x 160mm (customizable)

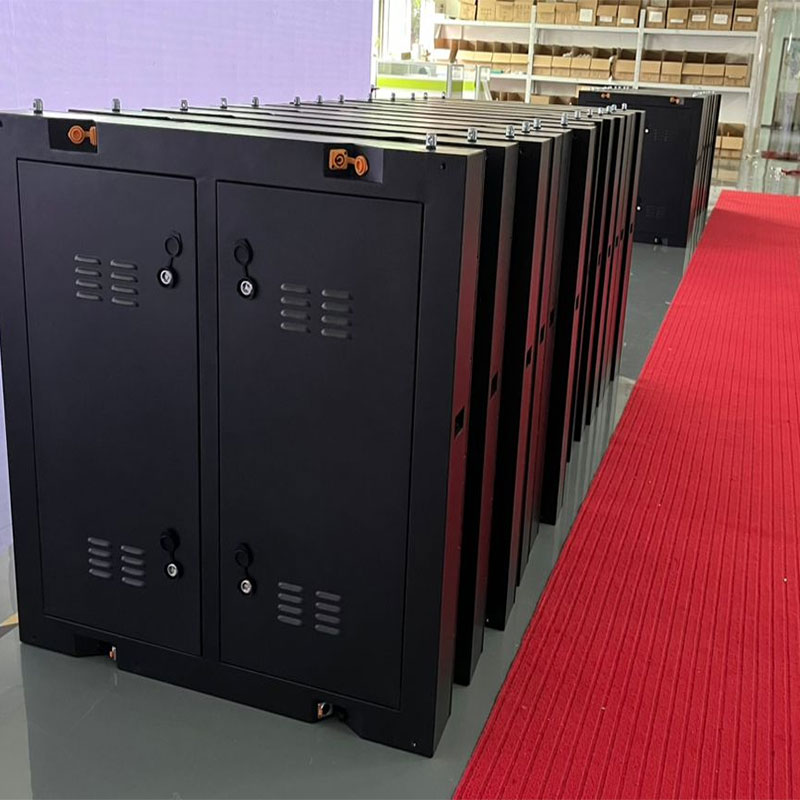

Cabinet Type: Iron cabinet
Cabinet Size: 960mm x 960mm (customizable)
Brightness: ≥5500cd/m²
Resolution: High-definition pixel resolution
Refresh Rate: ≥1920Hz / 3840Hz optional
Protection Level: IP65 (front and rear waterproof & dustproof)
Working Voltage: AC 110V~240V
Driving Mode: Constant current
Control Mode: Synchronous / Asynchronous
Control System: NovaStar, Colorlight, etc.
Signal Interface: RJ45, HDMI, DVI, etc.
Display Colors: 16.7 million
Gray Scale: 16-bit
Viewing Angle: 160° (H) / 140° (V)
Lifespan: >100,000 hours
Average Power Consumption: 350W/m²
Maximum Power Consumption: 900W/m²
Operating Temperature: -20℃ to +60℃
Humidity: 10%~90% RH
Material: Cold-rolled steel with powder coating
Weight: Approx. 35–45kg/m²

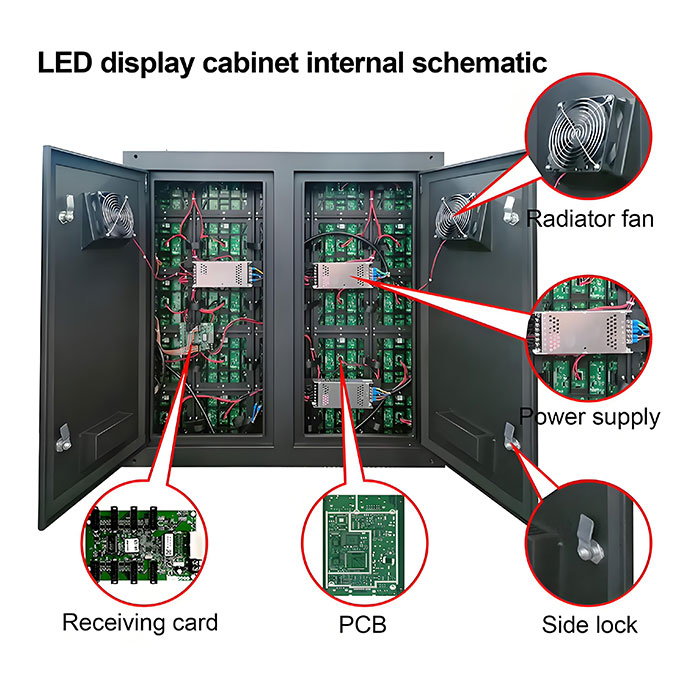

Cooling Method: Natural cooling / Fans
Supported Video Formats: AVI, MP4, WMV, MKV, etc.
Supported Image Formats: JPG, PNG, BMP, etc.
Text Display: Supports scrolling messages
Smart Control: 4G / WiFi remote control support
Remote Monitoring: Optional

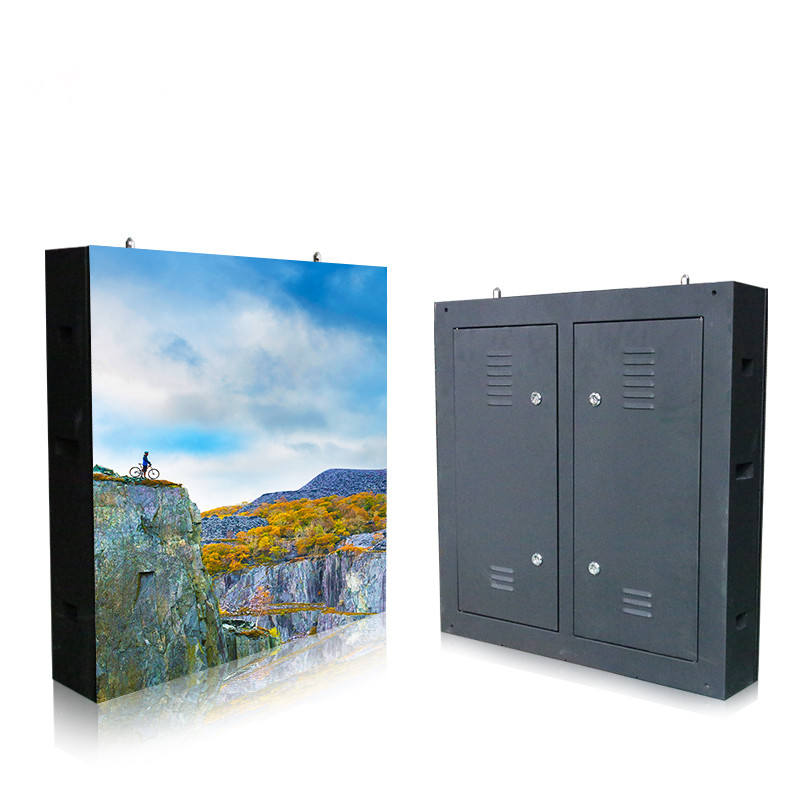

Module Maintenance: Front / Rear service
Cabinet Connection: Quick-lock design
Cabinet Color: Matte black
Anti-theft Design: Embedded lock structure
Maintenance Friendly: Modular structure

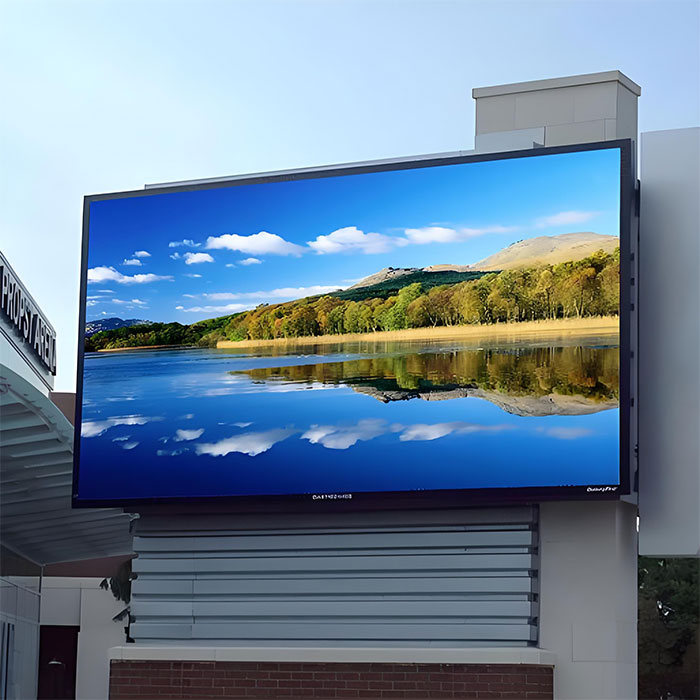

Application Scenarios: Outdoor advertising, stadiums, shopping malls, event stages
Working Time: 24/7 continuous operation
Certifications: CE, RoHS, FCC
Warranty: 2–3 years
Customization: Pixel pitch, size, functions customizable
