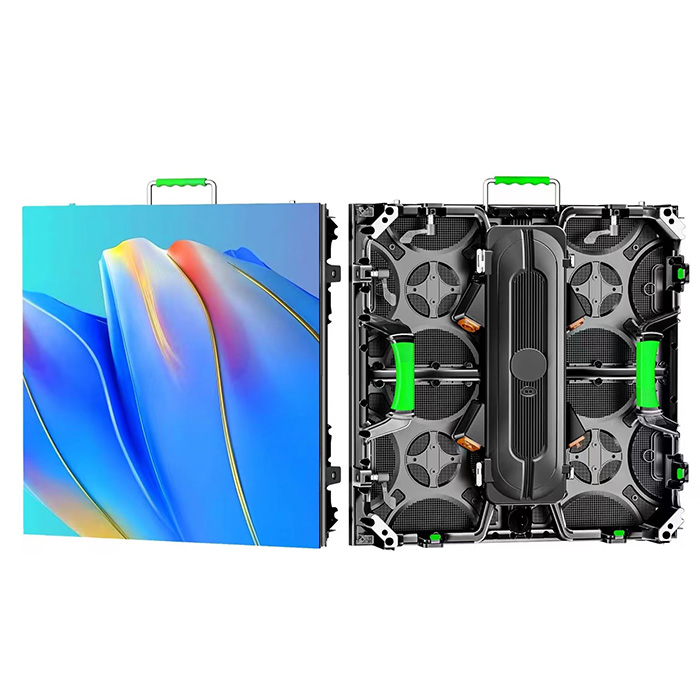

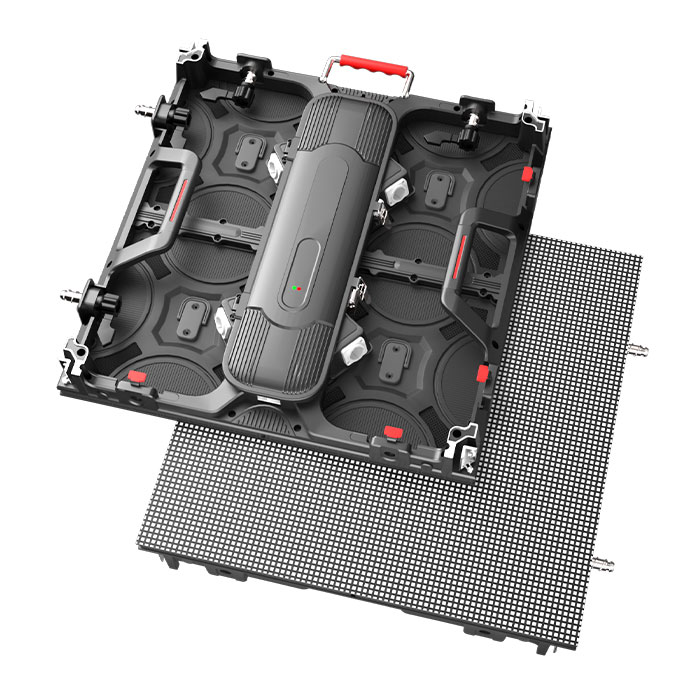

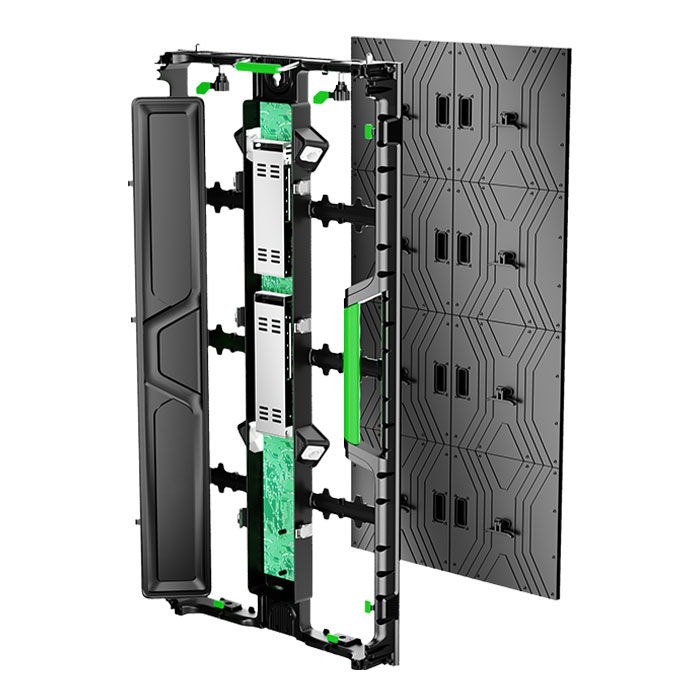

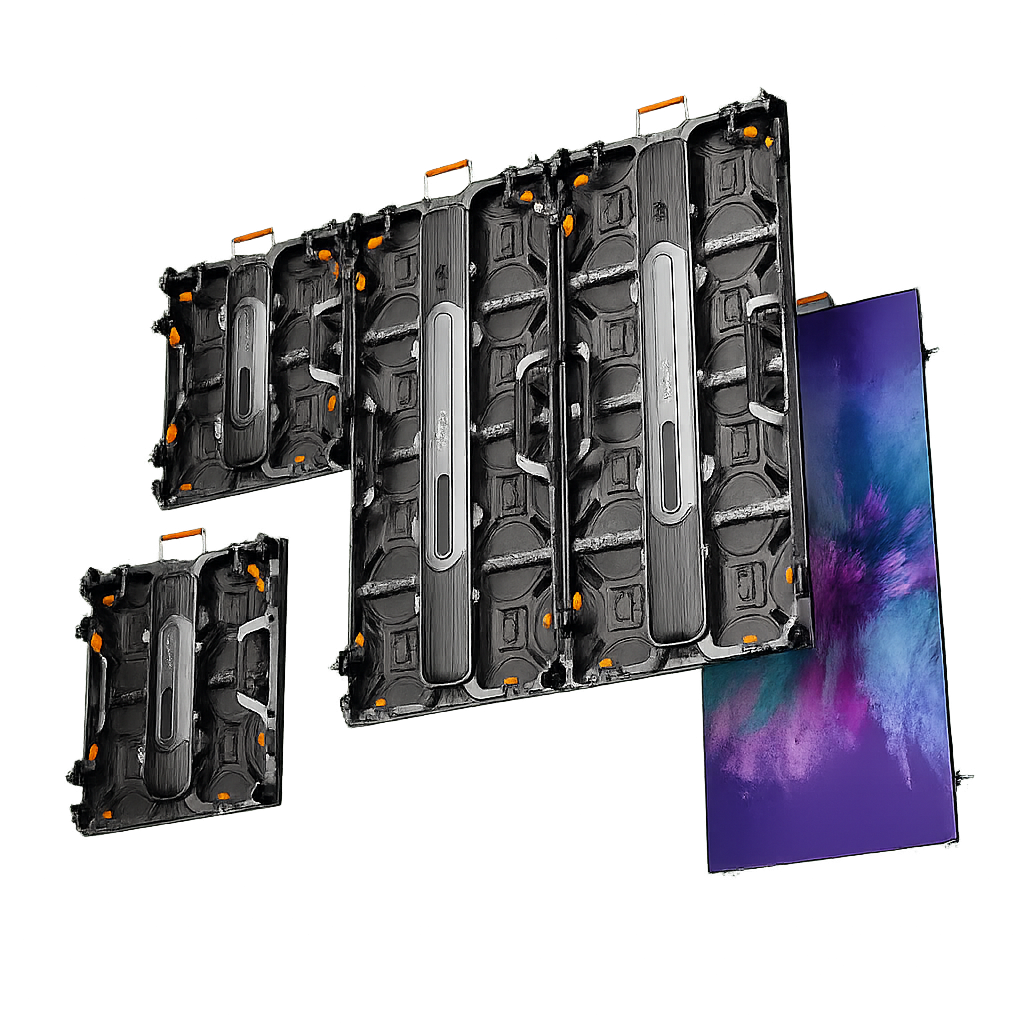

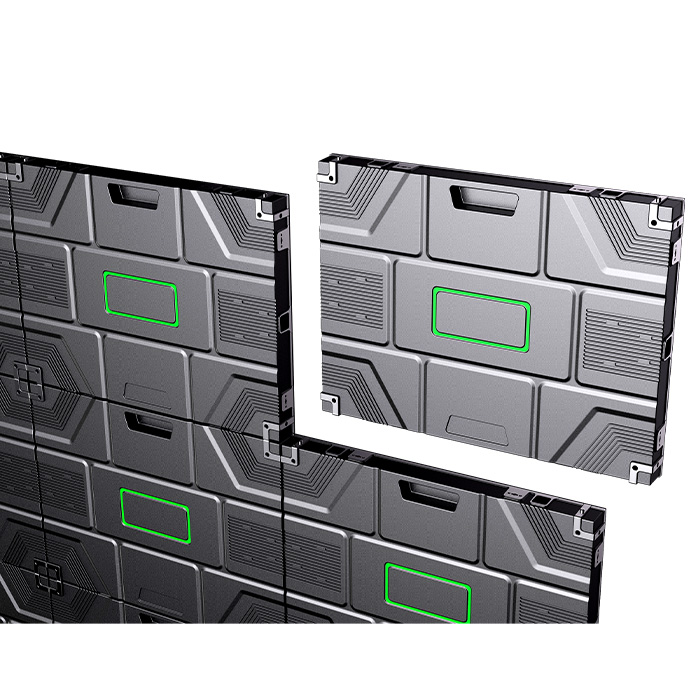

Cabinet Features:
* Ultra-light---lighter 40% than aluminum die-casting cabinet
* Ultra-thin---high strength,more slim than aluminum in the design,thinner around 30%
* Anti-interference---special anti electromagnetic interference function
* Fast cooling---good heat dissipation performance, effectively protecting the module circuit
* Easy installation---Installation takes only 20 seconds
* High precision---seamiess splicing though CNC machining
* High universality---can be processed according to module drawing,used for indoor
* High cost-effective---large-scale production,complete prduction &supply chain
P2 Indoor Display Specification |
|
Model No.:MP2-I |
|

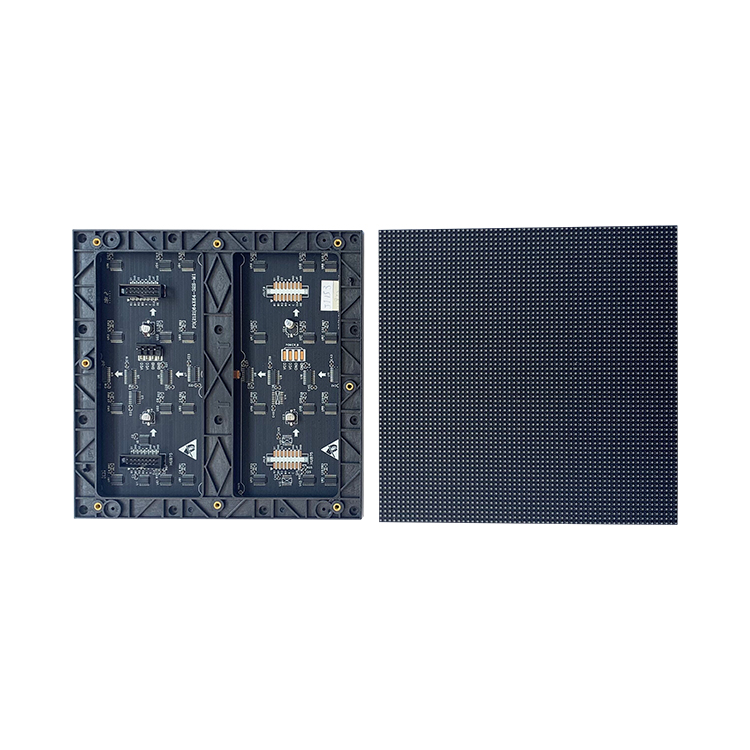

1. Module | Item | Specification |
|
| Pixel pitch | 2.0mm |
|
LED encapsulation mode | SMD 1515 |
|
Pixel density | 250000 | pixel/sqm |
|
Module dimension | 320*160mm |
|
Module resolution | 160*80 pixels |
|
2. Panel | Item | Specification |
|
| Cabinet dimension | 640*480mm / 960*800mm |
|
Cabient resolution | 320*240 pixels / 480*240 pixels |
|
Total resolution | Customized |
|
Cabinet material | Die-cast aluminum / Iron |
|
Cabinet weight | 7kg / 40kg |
|
Frame rate | 60 Frames/set |
|
Refresh rate | 3840HZ |
|
Grey scale | 16 bits |
|
Best view distancing | 2-25m |
|
Viewing Angle | 160°/140°(Optaional) |
|
Brightness | ≥700nits |
|
Power con | IP65 2.5m㎡ Power con |
|
Signal con | IP65 RJ45 Signal con |
|
Power consumption | Max: 800W/sqm,Average:400W/sqm |
|
Receiving card | Nova 416 |
|
Driving Method | 1/40 scan |
|
Transparency | 0% |
|
Power supply | Meanwell / Lianchuang |
|
LED lifetime | Up to 100,000 hours |
|
Operating Voltage | AC200-240V,50/60Hz |
|
Driver IC | ICN 1065 |
|
Working temperature | -20℃~70℃ |
|
Working humidity | 10%-70% RH |
|
Waterproof | IP40 |
|
Angle degree | 0 |
|

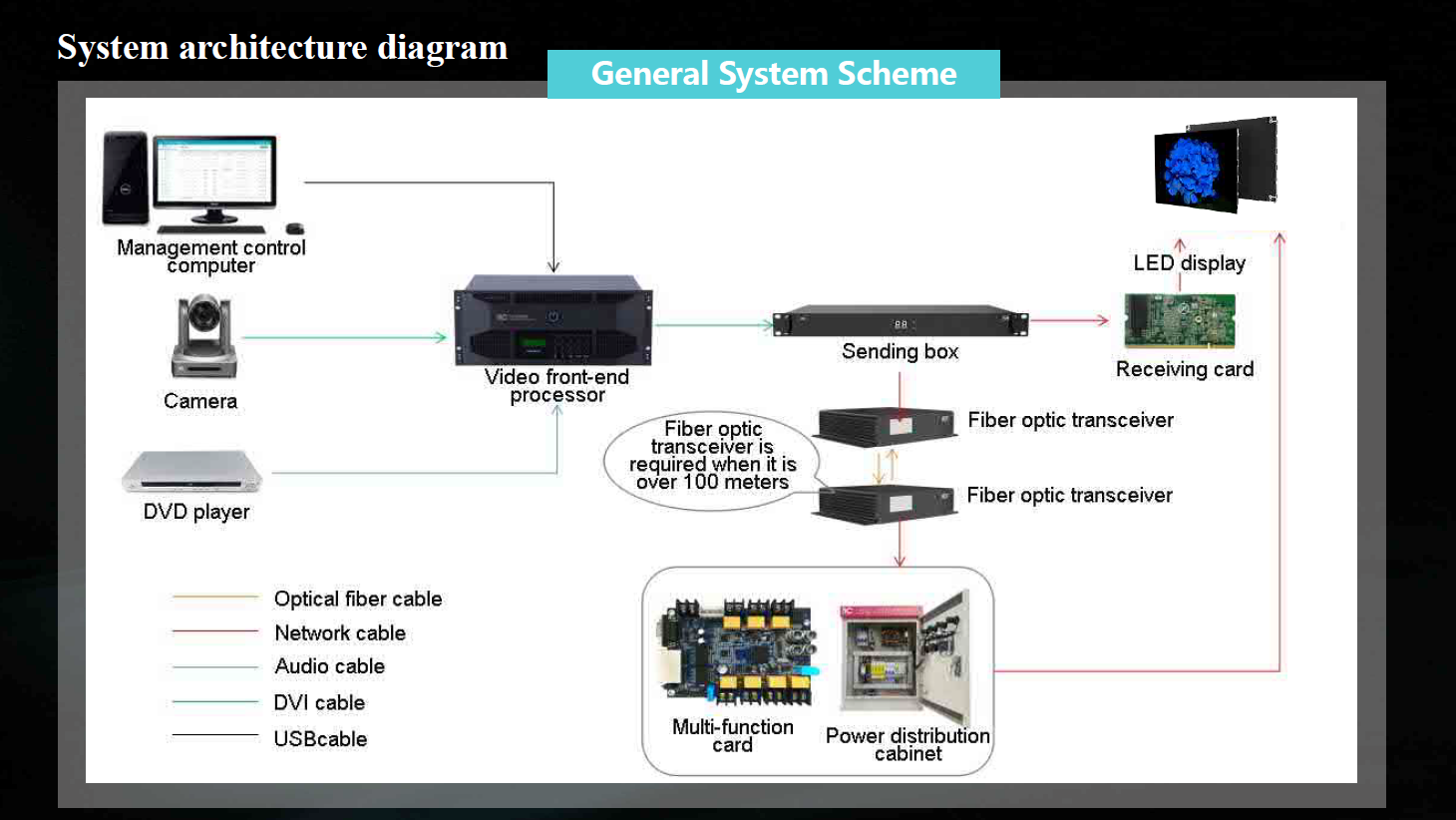

Control method | Synchronized with computer |
|
Color temperature | Adjustment |
|
Support Mode | RF / S-Video / RGB / RGBHV / YUV / YC |
|
Control Distance | Cat5e 120m / Optical fiber 15km |
|
Systems operating platform | WINDOWS |
|
3. Packaging | Item | Specification |
|
| Net weight | Customized |
|
Gross weight | Customized |
|
Size of case | Customized |
|
Total capacity | Customized |
|
Parameter |
Product Name | P1.25 | P1.53 | P1.86 | P2 |
Pixel composition | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B |
LED encapsulation | SMD1010 | SMD1212 | SMD1515 | SMD1515 |
Density of pixel/(dots/m2) | 640000 dot/㎡ | 422753 dot/㎡ | 289050 dot/㎡ | 250000 dot/㎡ |
Brightness | 500-1200nits | 500-1200nits | 500-1200nits | 500-1200nits |
Size of module (mm*mm) | 320mm*160mm | 320mm*160mm | 320mm*160mm | 320mm*160mm |
Cabinet size | 640mm*480mm | 640mm*480mm | 640mm*480mm | 640mm*480mm |
Drive Method | 1/64Scan | 1/52Scan | 1/43Scan | 1/40Scan |
Best viewing angle (Horizontal/Vertical) | H: 160°; V:160° | H: 160°; V:160° | H: 160°; V:160° | H: 160°; V:160° |
Refresh rate | 1920-3840HZ | 1920-3840HZ | 1920-3840HZ | 1920-3840HZ |
Blind Spot Rate | <0.000001 | <0.000001 | <0.000001 | <0.000001 |
Grey scale | 14 bits per color | 14 bits per color | 14 bits per color | 14 bits per color |
